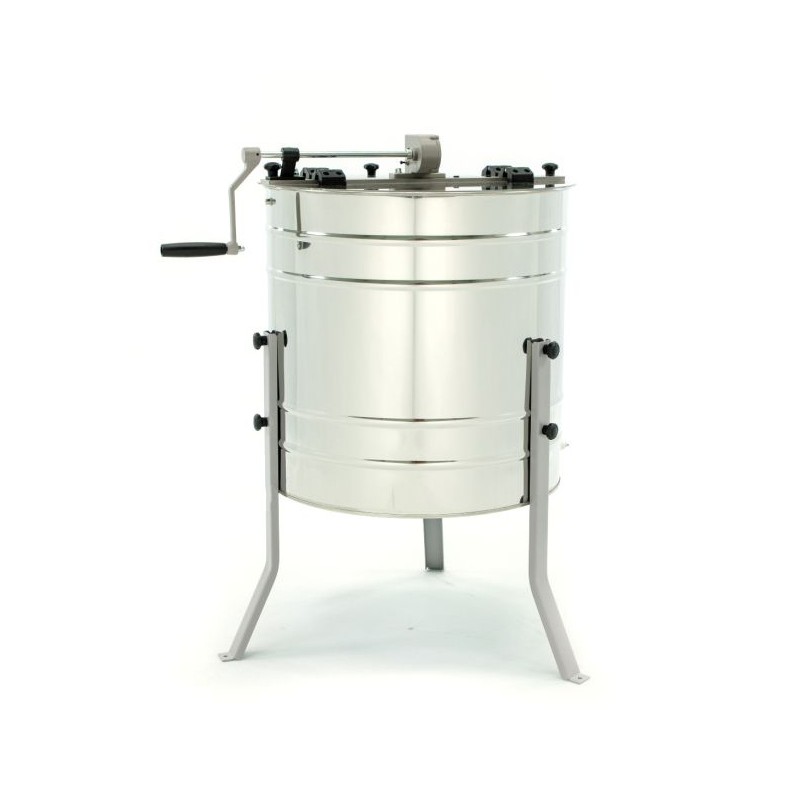

Manual Radial Honey Extractor 20 frames LYSON MINIMA

Designed for small to mid-sized apiaries, this Ø600 mm manual radial extractor from the MINIMA line offers a reliable and straightforward solution for honey extraction without electricity. With a capacity of 20 Dadant medium frames, it enables efficient and controlled processing with minimal setup.

The radial configuration places the frames like spokes around the spinning axis, allowing honey to be extracted from both sides of the comb simultaneously — no flipping required, provided the honey is fluid and the frames are evenly built.

The drum is made of 0.6 mm thick food-grade stainless steel, acid-resistant and easy to clean. The internal basket, made of Ø8 mm stainless steel rods, is supported at both the top and bottom for greater stability during manual operation.

The side crank allows intuitive control over the spinning speed, making it ideal for beekeepers who prefer hands-on operation. A 3 mm thick acrylic lid ensures safe visibility of the entire process without opening the extractor.

Included soft PVC pads help absorb vibrations from frames of uneven weight, improving comfort and overall stability. The 6/4” food-safe stainless steel honey gate ensures a quick and clean drain.

A durable and cost-effective solution for beekeepers seeking simplicity, autonomy, and performance in a compact format.

Capacity per cycle:
• 20 Dadant medium frames

Technical specifications:
• Drum diameter: 600 mm
• Drum height: 610 mm
• Stainless steel, 0.6 mm thick
• Basket: Ø8 mm stainless steel rods
• Lid: 3 mm acrylic glass
• Top bar: 10 mm flat bar, powder coated
• Honey gate: 6/4” food-grade stainless steel
• Hinges: 4 plastic pieces
• No drum rim or reinforcement
• No motor or controller
• Includes soft PVC anti-vibration pads
• Made in Europe
