32-34 °C TEMPERATURE | 12-24 V POWER |
1.8 A DRAW | 40 · 70 · 144 QUEEN CELLS |
A 12-24 V portable incubator that holds 6 to 10 day queen cells at 32-34 °C on the road between the breeding yard and the apiary.

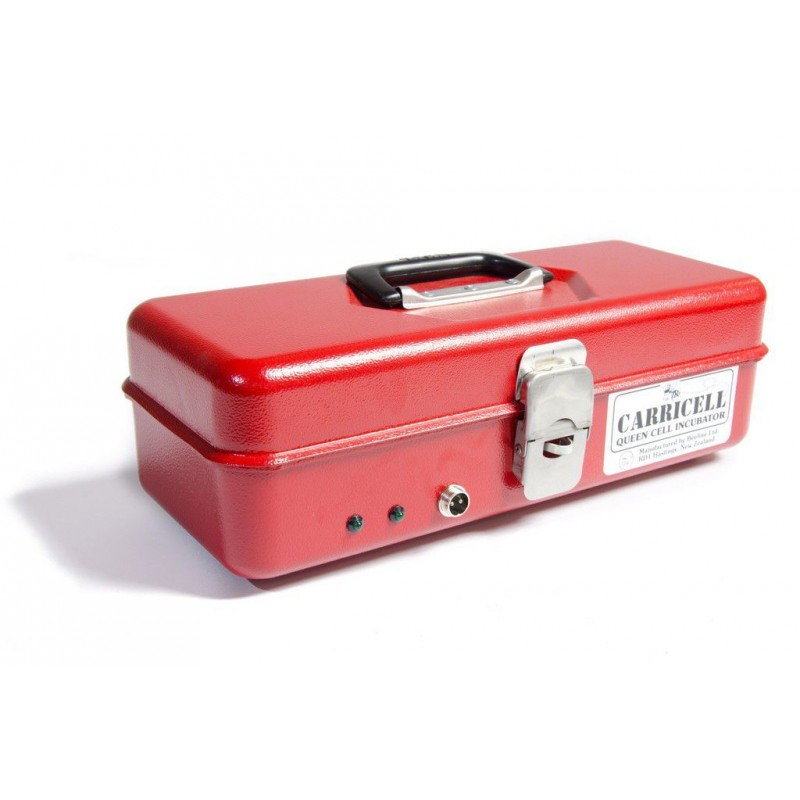

A sealed queen cell has nobody left to keep it warm the moment it leaves the frame, and the worst-controlled leg is exactly the one in the boot of the car. Beeline Ltd. solved that stretch with a metal case, a factory-set electronic thermostat and one foam socket per cell, so the first queen to emerge cannot reach her neighbours.
01 · THERMOSTAT
The two front lights tell you what happens inside: the left confirms power, the right goes out when the element stops, between 32 and 34 °C. The reading comes not from the air but from a digital strip under the foam tray, where the cell actually sits. The maker asks for around 15 minutes of preheating before loading and fixes 34 °C as the limit: the unit heats, it does not cool, and above that nothing can be corrected.
02 · POWER

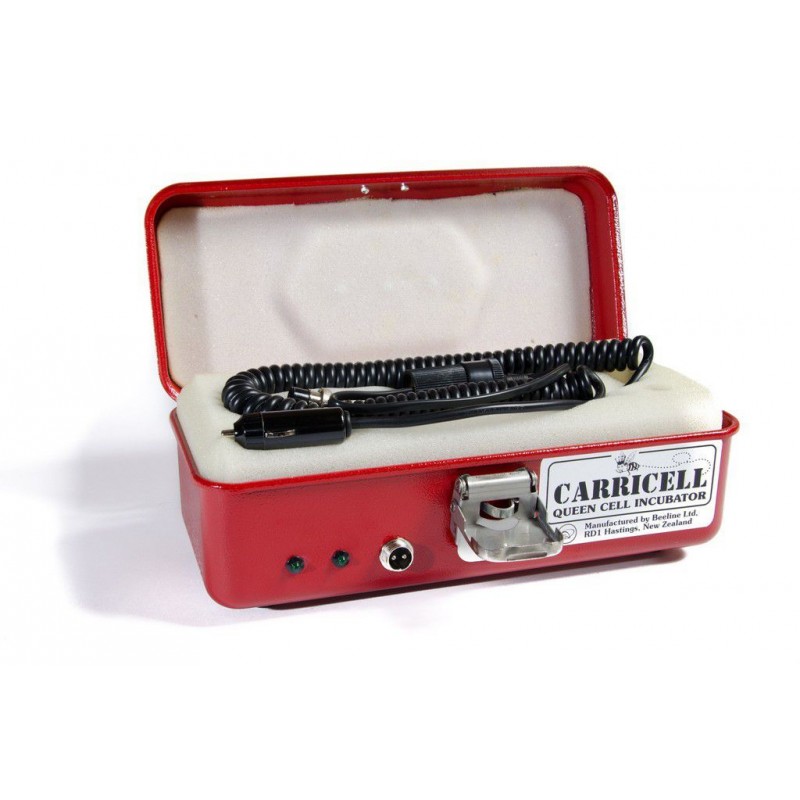

It ships with a coiled lead and a cigarette-lighter plug: its natural use is wired into the vehicle for the run. For the shed you need a battery charger or a transformer rated 50 VA or more on the accessory socket supplied; it is not in the box. Draw is 1.8 amps intermittently, low enough for a full day on a car battery, and the circuit is polarity protected: positive or negative earthed batteries both work.
03 · FOAM TRAY
Cells load one by one, upright, each in its own hole. Because they sit apart, a queen that emerges early cannot reach the ones beside her. The tray lifts out complete and spends the night in a cabinet incubator without handling cell by cell; it is sold on its own as a spare in all three sizes.
04 · COMPATIBILITY
Unlike almost everything in queen rearing, there is no closed ecosystem here: a ripe cell goes in whether it came from Nicot, JZBZ, Jenter or a graft onto a wax cup. The one rule is that it travels loose — the cell bar comes off before loading, because every cell needs its own socket. Nor does the hive format matter, Dadant Blatt, Langstroth or Layens: the unit lives in the vehicle, not in the hive. The only real decision is batch size: 40, 70 or 144 cells.
05 · BEFORE YOU BUY
This is a transport incubator for the last leg, not a rearing cabinet: it does not incubate from grafting and is no bank for emerged queens. It has no humidity control — over 6 to 10 days none is needed, and a damp cloth laid over the cells is enough if you want it higher. And budget the transformer separately if it will live plugged in at the shed.
| ✓ FITS | Breeders moving sealed queen cells by road: deliveries to fellow beekeepers, requeening rounds and batches of 40 to 144 cells with the vehicle running. |
| ✕ DOES NOT FIT | Anyone wanting to incubate long batches in the shed, hold queens that have already emerged, or plug into 230 V with no supply in between. |
Never leave the unit in direct sun inside a vehicle. The thermostat only heats: if the cabin climbs, the inside climbs with it, and above 34 °C the pupa is spoiled. Keep it shaded and the lid shut.
Switch the supply off before connecting a battery charger or transformer. Output must sit between 12 and 24 volts and rate 50 VA or more.
Queen cells are fragile: load them carefully, upright, and avoid potholes and hard braking. Unplugged in the cold, the case holds heat only briefly.
| Manufacturer | Beeline Ltd. — Hastings, New Zealand (John Dobson design) |
|---|---|
| Models | 40, 70 or 144 queen cells |
| References | 40CELL · 70CELL · 144CELL |
| Power | 12-24 V DC: vehicle socket, battery or transformer |
| Draw | 1.8 A intermittent · polarity protected |
| Transformer | 50 VA minimum — not included |
| Temperature | 32-34 °C, factory-set electronic thermostat |
| Thermometer | digital strip under the foam tray |
| Preheating | around 15 minutes before loading the cells |
| Included | removable foam tray, coiled lead with lighter plug, accessory socket and digital thermometer |
| Spare part | foam tray available separately in all three sizes |
| Case | metal, hinged with a lever catch |
