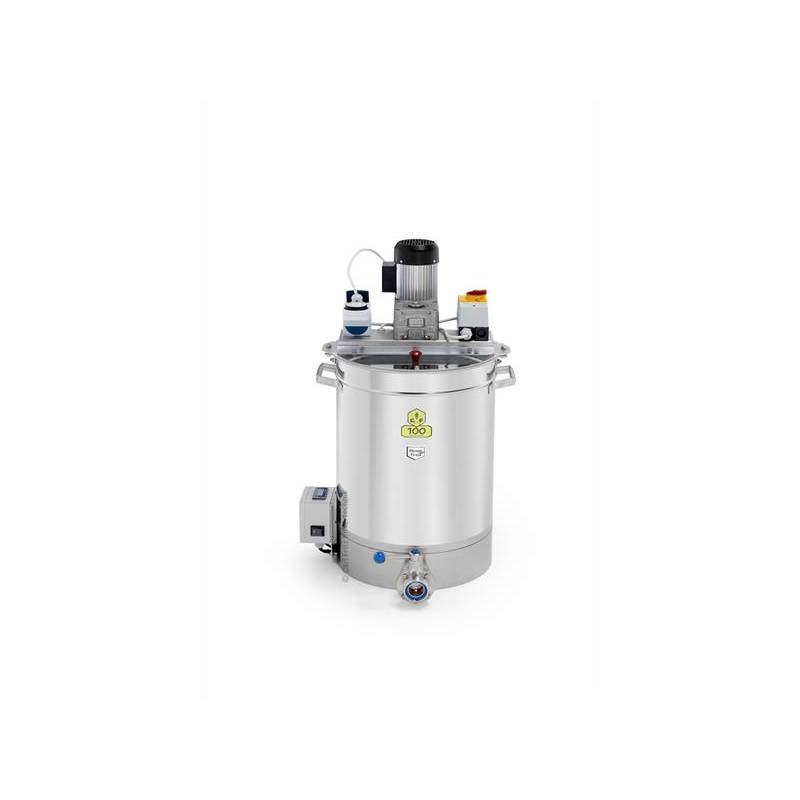

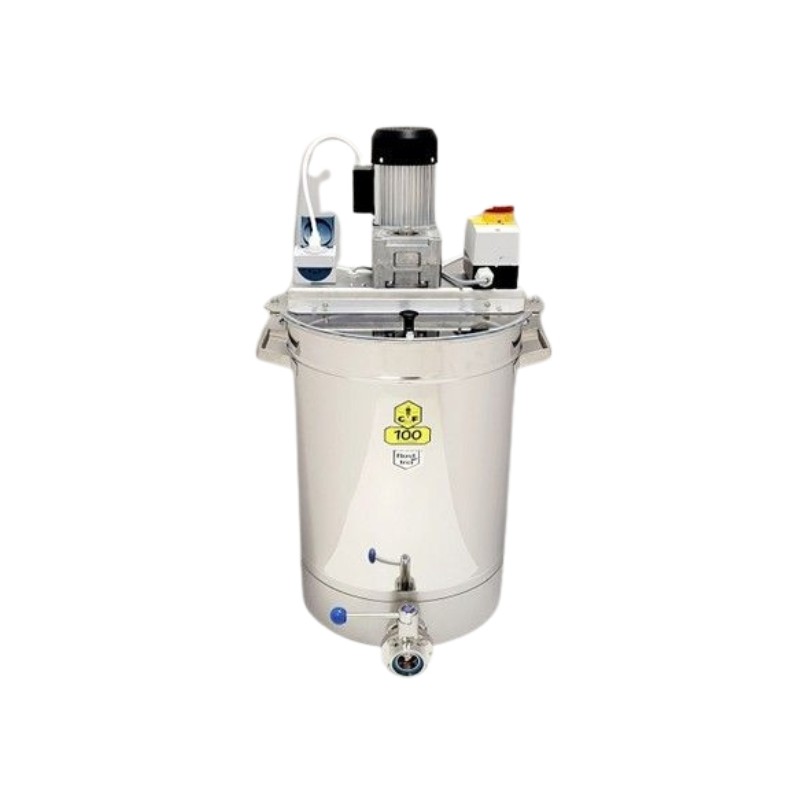

Honey Creamer 100kg Carl-Fritz®

Technical details:

• Flat gear motor 250 W / 230 V
• Approx. 24 rpm
• Tank inner Ø 43, tank height: 62 cm
• Tank and mixing device made of stainless steel
• Total height: 105 cm

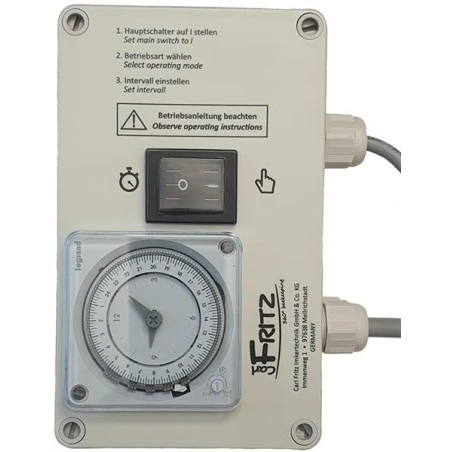

• Incl. socket timer

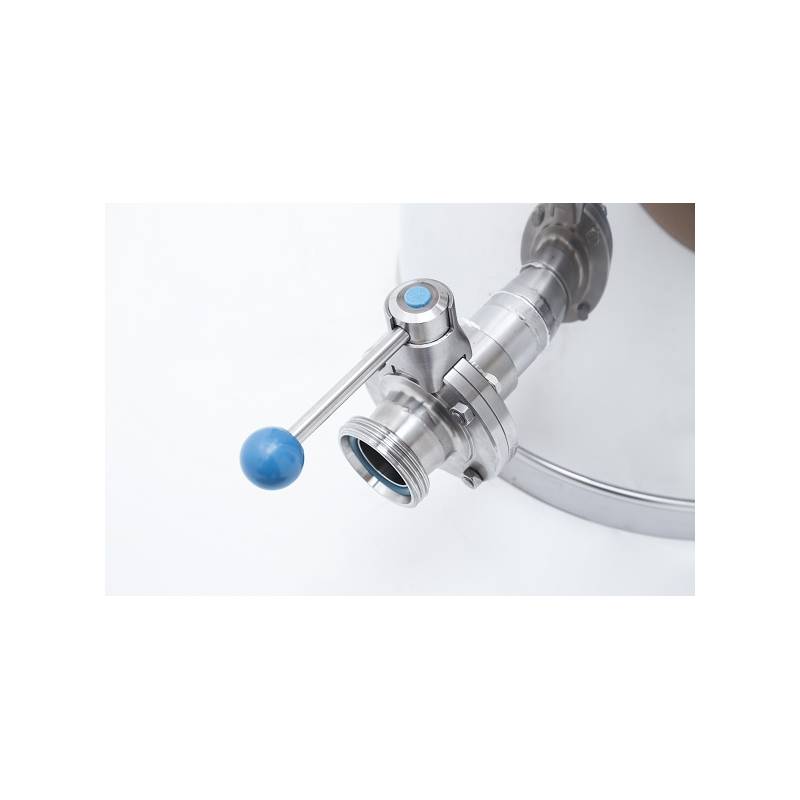

• Outlet: disc valve DN40

Working principle

In all models the mixing and stirring of the honey is done with a perfectly fitted paddle screw with a very solid shaft. Honey creamer for 100 kg or more have in addition to the paddle screw a rake part at the bottom which has the same conical form like the bottom. This rake part gets to every bit of honey in the tank and prevents crystallization on the tank wall or bottom. It moves the honey from the bottom to the top so no air can be trapped. During operation it will create a circulating stream which mixes and stirs the honey thoroughly even when working only for short cycles. The paddle screw works without an end support bearing, and therefore no contamination with bearing grim can occur.

If you look into the creamer from the top, you will notice that the paddle screw turns in a clockwise direction. If it turns the other way (only possible with a 400V motor) an electrician has to be notified to re-wire it, so it turns in the other direction!
