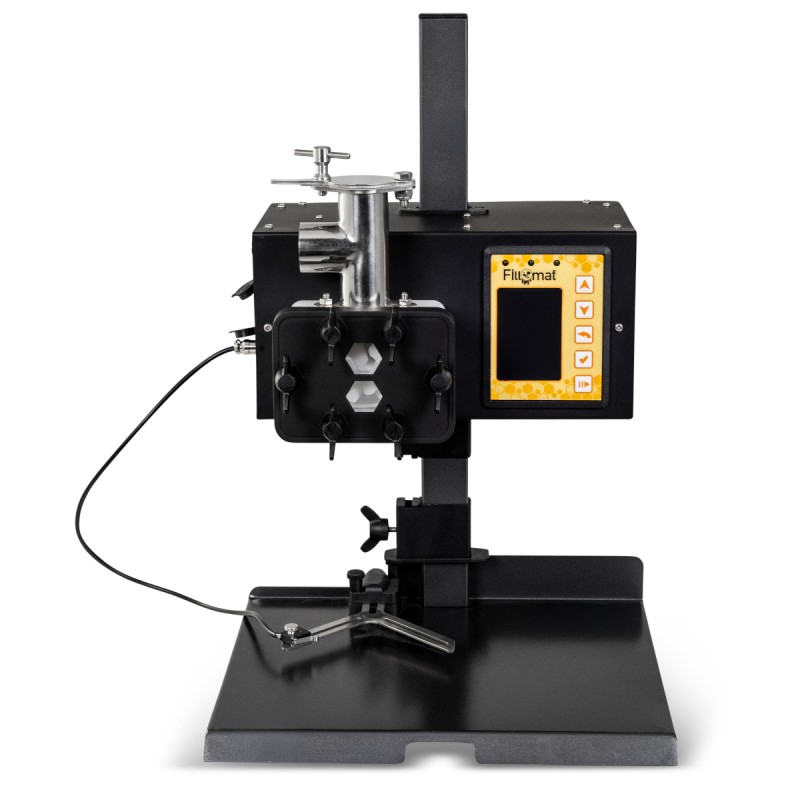

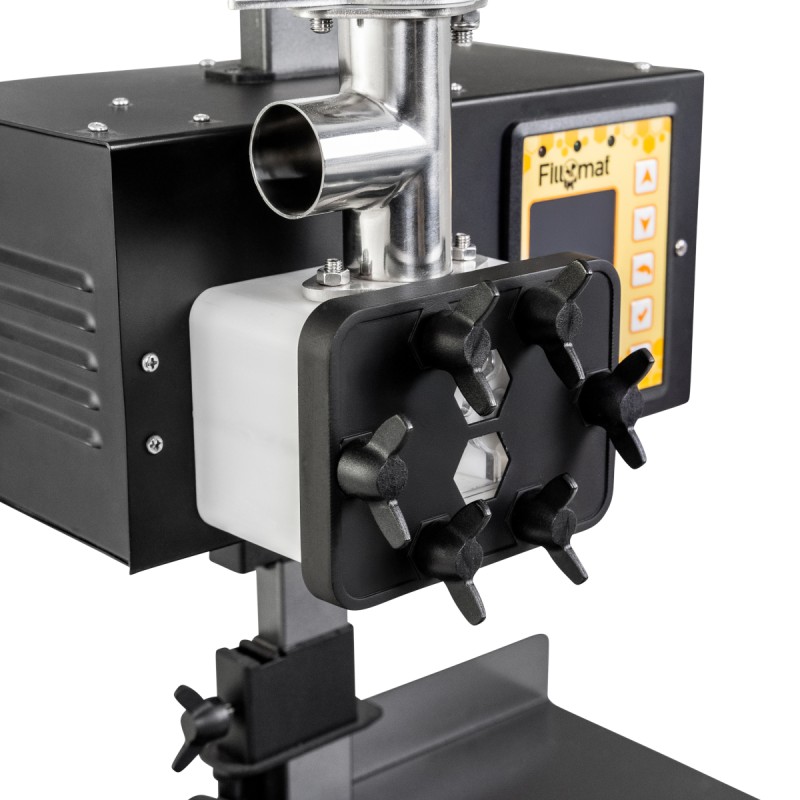

FillOmat® Honey Filling Machine

Key Features:

• Efficient and versatile filling: With a capacity of up to 600 jars of 500 g per hour, the FillOmat® is designed to meet the needs of professional beekeepers and medium producers. It is compatible with different types of honey, whether liquid or creamy, thanks to its adjustable system that allows you to select filling temperatures between 20°C and 40°C, ensuring optimal flow.

• Precision control: The electronic control system with a touch screen is intuitive and allows you to adjust the filling amounts from 30 g to 45 kg, ensuring precise repetition in each batch, regardless of the honey's viscosity. For denser honey, such as rapeseed honey, it is recommended to heat the honey to 25-35°C before filling to maintain optimal flow.

• Pumping and mixing function: In addition to filling, the FillOmat® can pump and mix creamy honey, a useful feature for beekeepers producing whipped or creamy honey. The "Umpumpen" mode allows for perfect mixing, especially when inoculating honey with creamy honey to initiate controlled crystallization. It is recommended to perform 3 to 8 pumping cycles at one-day intervals to achieve a uniform texture.

• Adaptable and modular: The FillOmat® is designed with a modular approach, meaning you can customize it with different components according to your needs. From different nozzle diameters to suit various jar sizes to the ability to modify the pump or tubing system, the FillOmat® adapts to every type of production.

Technical Specifications:

• Power supply: 230 V
• Power consumption: 350 W
• Filling range: 30 g - 45 kg
• Pumping capacity: Up to 400 kg/h
• Dimensions: 34.5 cm wide, 30 cm deep, 50 cm high
• Weight: Approximately 18 kg
• Noise: < 80 dB
• Accuracy: 1-2% depending on honey type, quantity, and filling speed

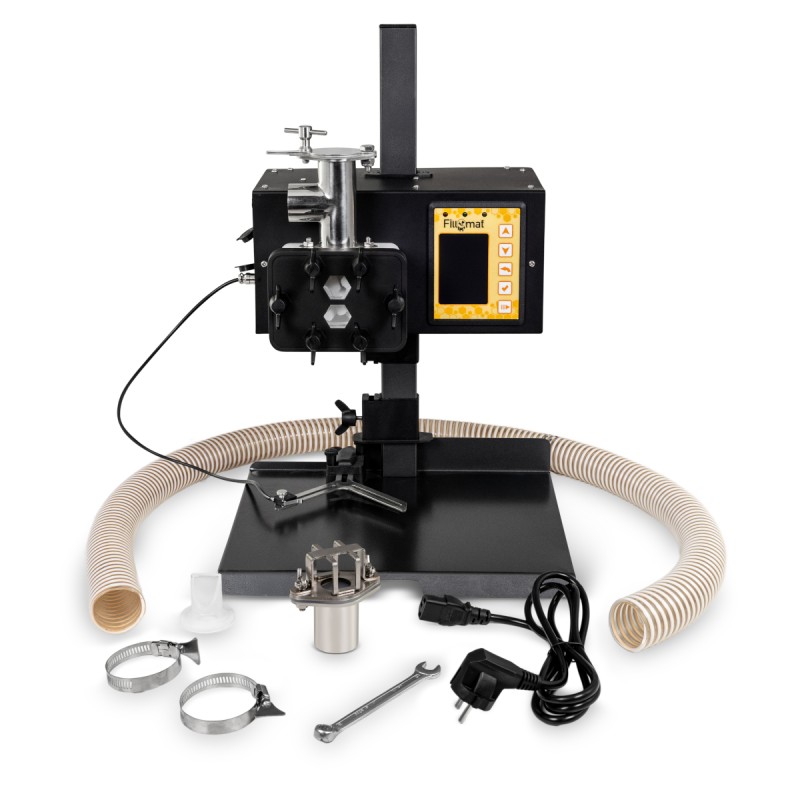

Includes:

• Filling machine with touch control
• Non-return valve for suction hose
• 1.5 m suction hose with a diameter of 38 mm
• 2 interchangeable nozzles for different jar diameters
• 2 stainless steel hose clamps

Why choose the FillOmat®?

This filling machine is a versatile tool that not only allows you to fill honey accurately and quickly but is also an excellent option for pumping and mixing creamy honey. It is ideal for beekeepers looking to optimize their filling process with a durable, easy-to-operate machine that requires minimal maintenance. Additionally, its ability to work with different honey viscosities makes it a valuable investment for beekeepers handling various honey varieties.

Whether you're an experienced beekeeper or just starting out, the FillOmat® will help streamline your daily operations, improving the quality and consistency of your packaged products.
